Drip mold machine to make shoe key chain logo label toy trinket or
shoe cover pvc glue dispenser for factory
UV Dispensing Machine
①Ultimus V dispenser introduction:
The operator's guesswork is replaced by utilizing air pressure and
a microprocessor-based timing device to adjust the amount of fluid
applied to the part. EFD's pneumatic dispensing systems eliminate
the variability found in traditional dispensing processes.
②Ultimus V Dispenser Advantages include:
High productivity and first pass yield.
Powerful process control.
Excellent product quality, reliability and elegant appearance.
Lower rework rates and fewer rejects.
No waste or confusion.
Simplified training for new staff.
The Ultimus V High Precision Dispenser takes the accuracy and
consistency of dispensing to a new level, enabling precise control
of easily viscous adhesives such as:
Two-component epoxy adhesive whose viscosity varies with time.
UV-curable adhesives whose viscosity varies with temperature, etc.
PVC product process flow diagram:
1, Mixing: According to requirements, according to a certain proportion of
PVC materials, mixing evenly;
2, vacuum: The use of our special PVC vacuum equipment to remove bubbles;
3, dispensing: The PVC raw materials into the dispensing machine,
4, drying: After the injection molding table cut pieces into the
energy-saving oven or baking mold table, its drying and shaping;
5, filling the bottom material: after the molding table into the automatic bottom material filling
machine,
6, dry the bottom material: will fill the bottom material mold again into the energy-saving
oven or baking mold table dryingshape;
7, complete: Cooling table take out the product, Trim and tear off the leftover
material, the plastic part of PVC product isfinished.

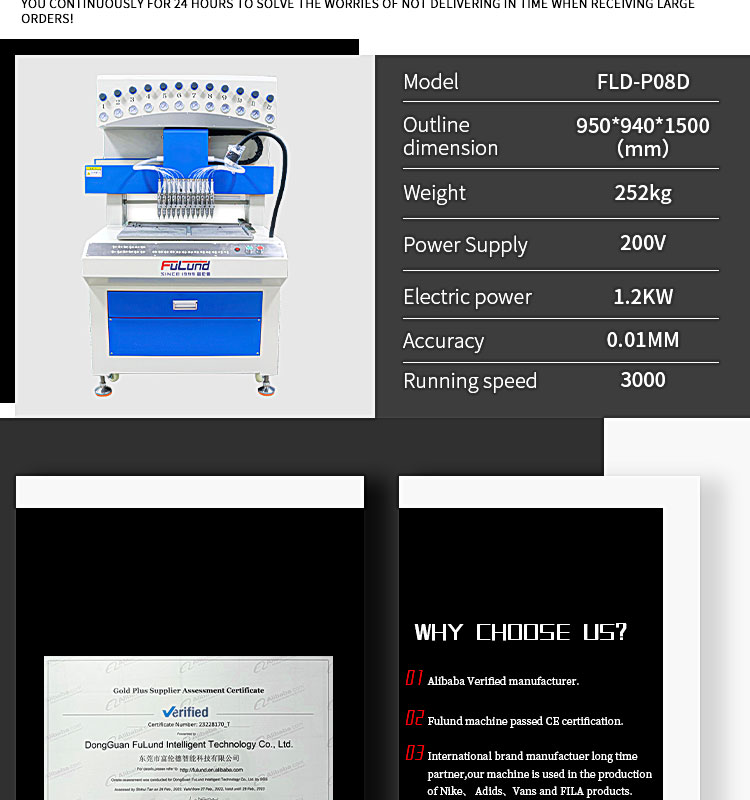

Technical parameters:
| Model No. | FLD-P08D |
| Machine Size | 950*940*1500mm |
| Weight | 250KG |
| Electric heating power | 1.6KW |
| Effective Trip | 600*350*70mm |
| Worktable Size | 550*350mm |
Machine Features:
1: Shortcut keys can be set to facilitate the operation of workers,
avoiding the direct operation of the machine in the mode of fixed
order. With this function, the machine can be used flexibly. When
workers fully master the machine, it can also operate circularly,
which can greatly improve the efficiency.
2: Simple operation, multi needle and multi-color, flexible
configuration, simple operation, accurate dropping, and continuous
feeding without shutdown.
The needle can be extended to 8-18 colors, and multiple needles can
be combined at the same time without glue leakage. Full automatic
PVC drop plastic dispensing machine, with complete performance, is
a professional PVC drop plastic trademark machine.
This machine has the function of synchronous dispensing valve. For
example, 12 dispensing valves can be lowered simultaneously for
single color trademark, 6 dispensing valves can be lowered
simultaneously for double color trademark, 4 dispensing valves can
be lowered simultaneously for three color trademark, and so on.
This machine has more functions that other similar machines do not
have, that is, 12 different molds can be produced at the same time
within the usable range of this machine, which greatly improves the
use power of different molds and reduces the concern that some
customers think they can't use the glue dispenser if the quantity
is small.
3, High precision, high stability, fast and smooth rounding speed
and low sound. The accuracy can reach 0.01mm The product quality is
very stable, with uniform thickness and weight, and the product
qualification rate reaches more than 95%, reducing the waste of raw
materials. High stability: work for you continuously for 24 hours
to solve the worries of not delivering in time when receiving large
orders!
Application scope:
Drop plastic production of PVC trademark and soft rubber label
PVC cartoon and handicraft drop plastic production
Production of PVC shoes, bags and other clothing accessories
